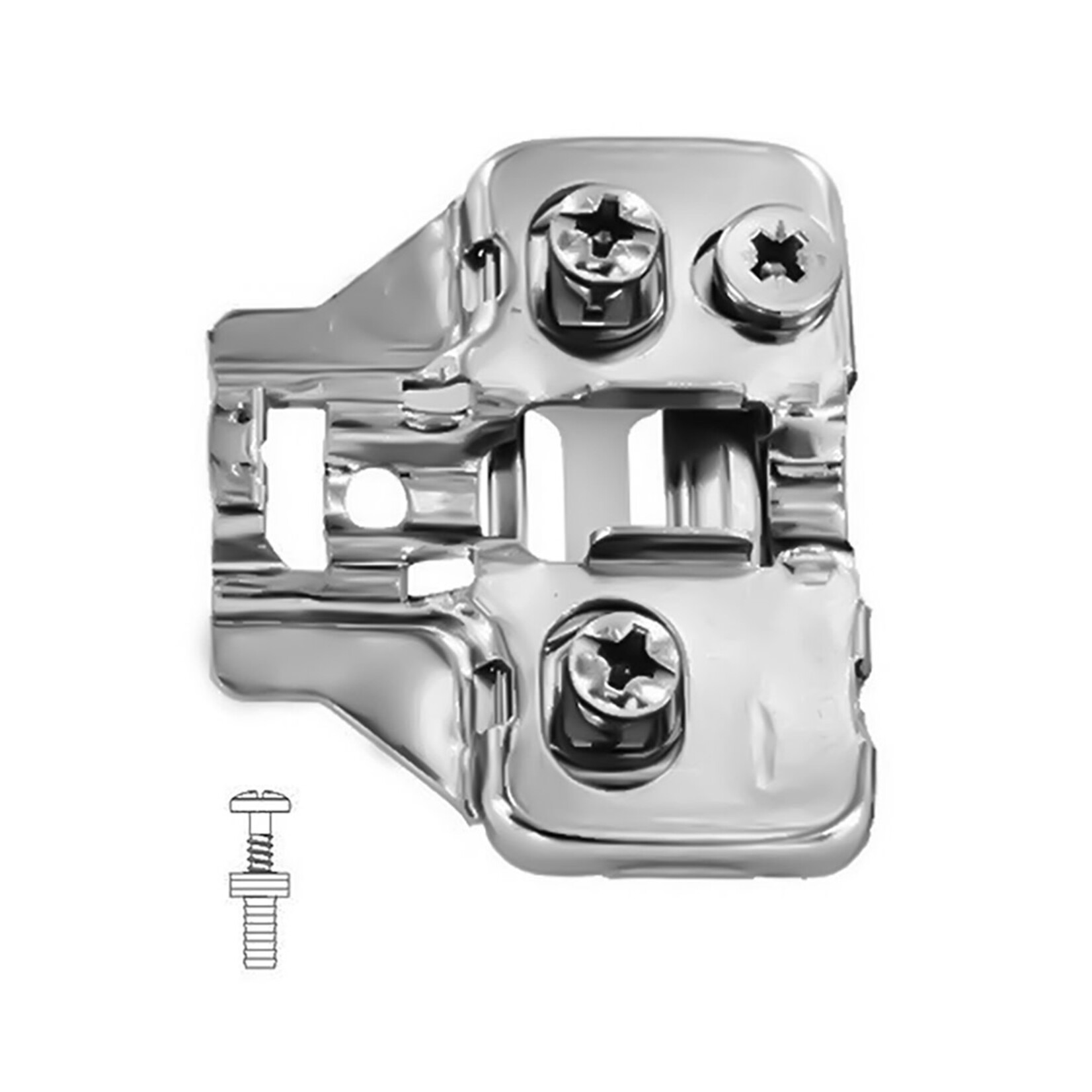

DTC - Clip-on - Cam Mounting Plate

The DTC mounting plate technology makes attaching or removing your cabinet doors quick and easy. With a single cam adjustment so that you can fine-tune the vertical alignment of your cabinet door. The 2 mm plate height is made for standard 3/4 in cabinet box material. When power tools aren't handy, the expansion dowel mounting plates are a perfect alternative to the euro screw mounting plate. As long as there are pre-drilled holes in your cabinet, all you need is a screwdriver. The dowels expand in the holes as you tighten the screws into them. No power tools are necessary.

Image	Article #	Hinge Plate Attachment	Plate Fixing Type	Plate Height
	DT10589T20TQ	Clip-on	Screw-on	2 mm
	DT10589T00TQ	Clip-on	Screw-on	0 mm
	DT10589T22TQ	Clip-on	Euro Screw	2 mm
	DT10589T02TQ	Clip-on	Euro Screw	0 mm
	DT10589T2QTQ	Clip-on	Expansion Dowel	2 mm
	DT10589T0QTQ	Clip-on	Expansion Dowel	0 mm
	DT10589T42TQ	Clip-on	Euro Screw	4 mm
