DTC - Clip-on - Cam Mounting Plate

DTC - Clip-on - Cam Mounting Plate - 2 mm - Screw-on Install DT10589T20TQ
C$1.80

Plate Height

2 mm0 mm
Article number: DT10589T20TQ
Manufacturer SKU 105-89T20TQ
In Store Sample Location:
Stock Location:
Delivery time: In Stock - Ready to Ship.

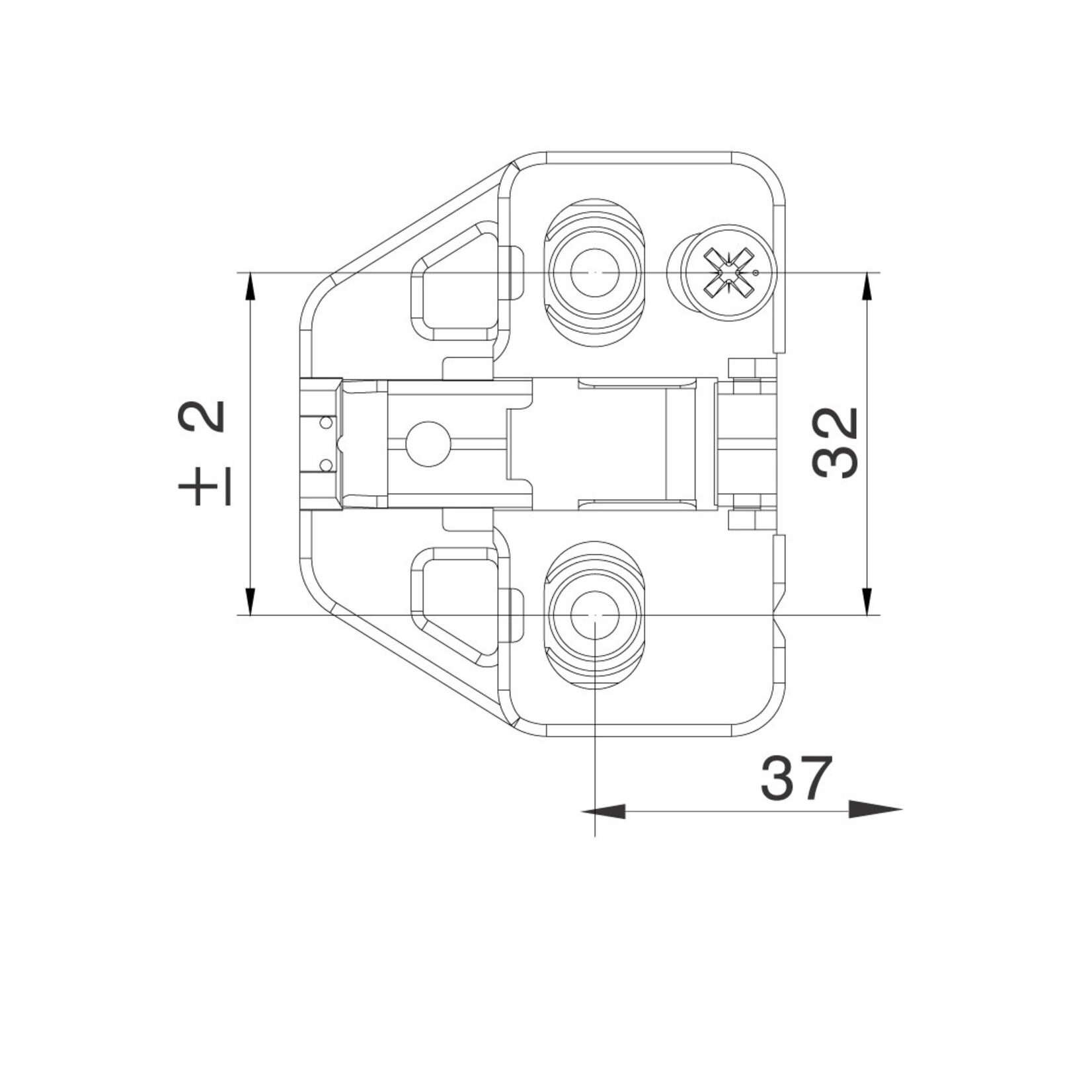

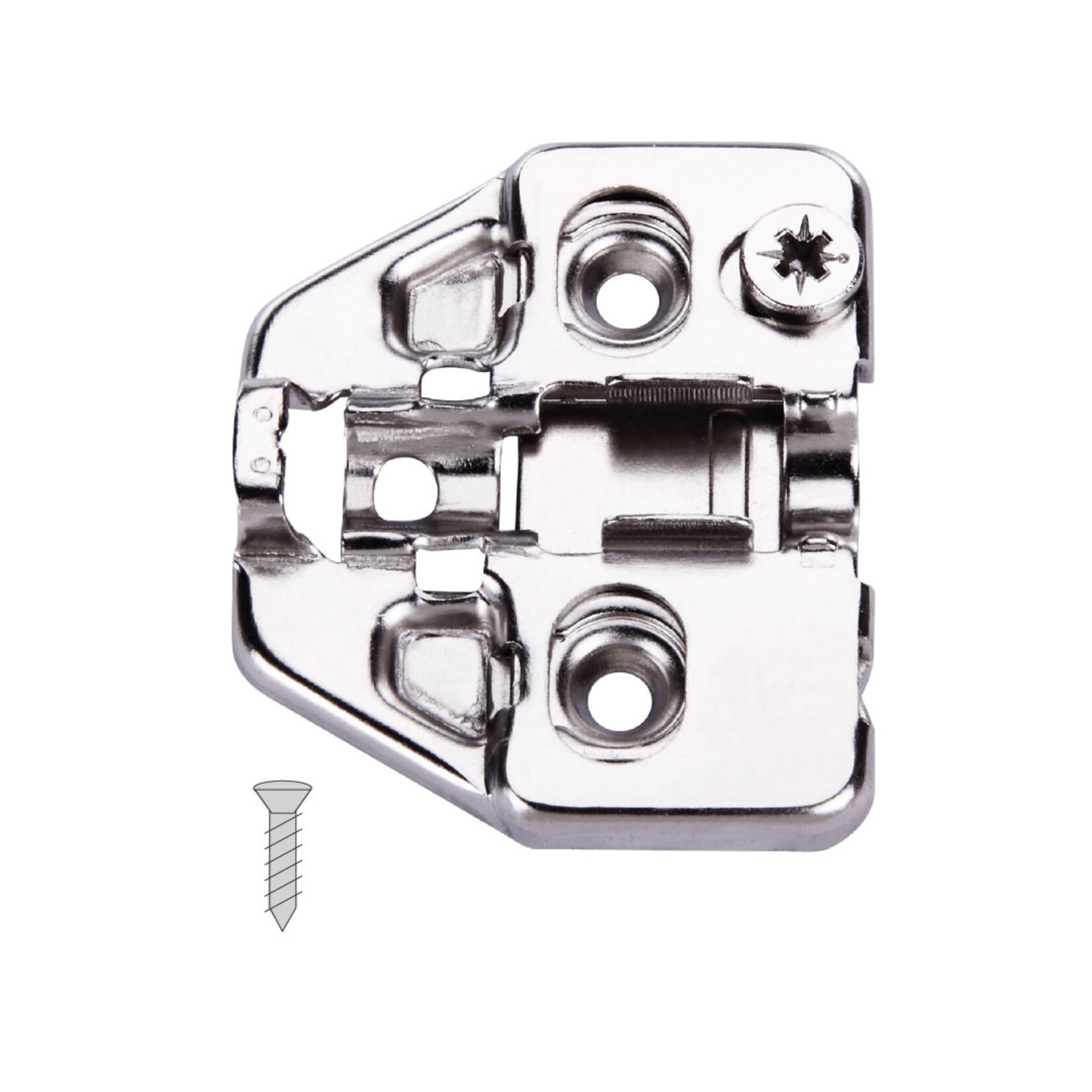

The DTC mounting plate technology makes attaching or removing your cabinet doors quick and easy. With a single cam adjustment so that you can fine-tune the vertical alignment of your cabinet door. The 2 mm plate height is made for standard 3/4 in cabinet box material. The plates screw into the inside of your cabinet box with no existing holes needed (pre-planning is necessary however) and two standard #6 Robertson x 5/8 in wood screws, which are sold separately.

ImageArticle #Hinge Plate AttachmentPlate Fixing TypePlate Height
DT10589T20TQClip-onScrew-on2 mm
DT10589T00TQClip-onScrew-on0 mm
DT10589T22TQClip-onEuro Screw2 mm
DT10589T02TQClip-onEuro Screw0 mm
DT10589T2QTQClip-onExpansion Dowel2 mm
DT10589T0QTQClip-onExpansion Dowel0 mm
DT10589T42TQClip-onEuro Screw4 mm

Details

Brand
DTC
Hinge Plate Attachment
Clip-on
Collection
Clip-on
Type
Cam Mounting Plate
Manufacturer SKU
105-89T20TQ
Article #
DT10589T20TQ
Plate Fixing Type
Screw-on
Plate Height
2 mm
0 stars based on 0 reviews
