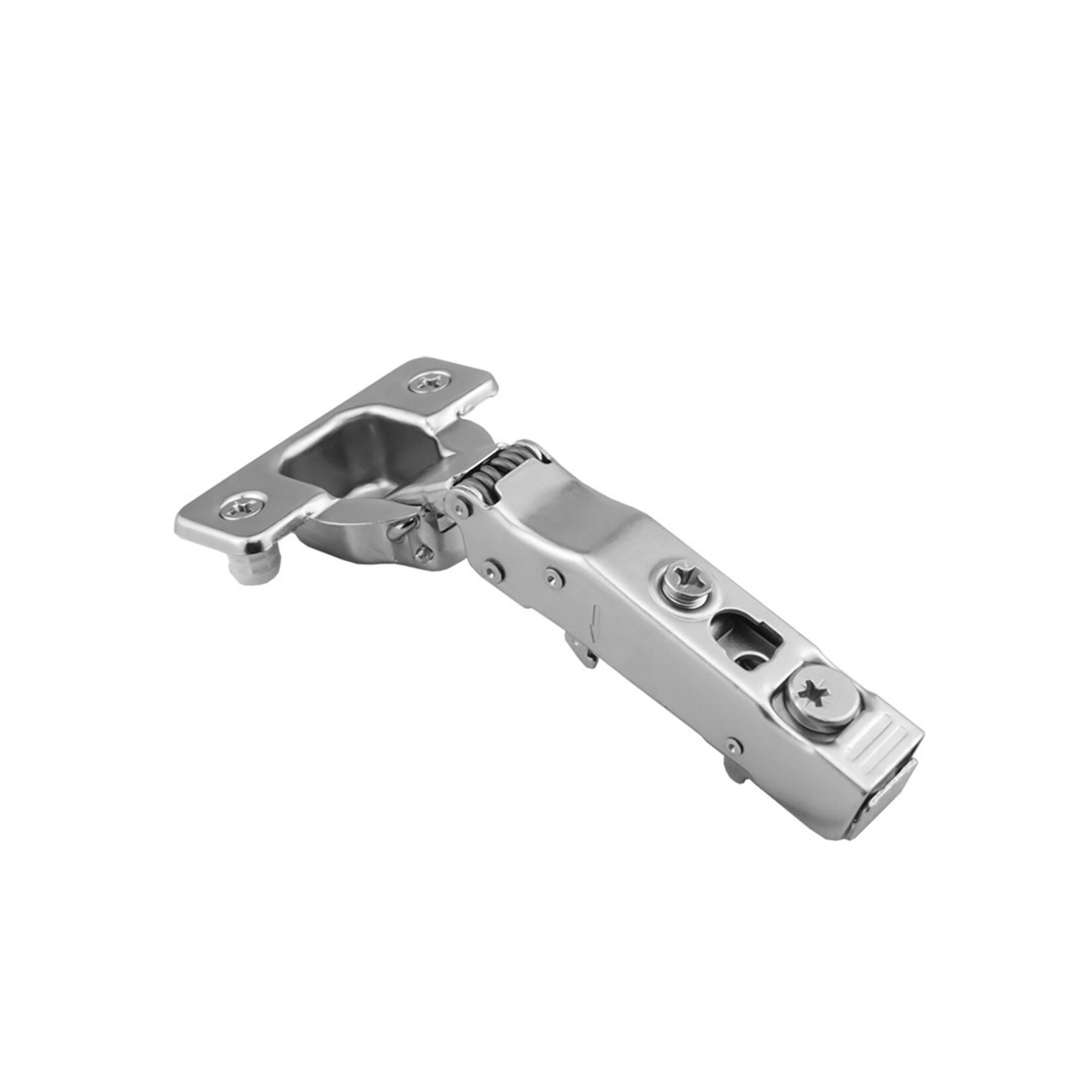

DTC - 110° Hinge - Soft-Close

The smooth, soft-close motion of the Pivot-Pro series is the result of a strong damper mechanism that is built into the hinge arm. The new C80 hinge family offers an increase in performance over our best-selling C96 series of Soft-Closing hinges. While retaining all the best features, this hinge has the ability to catch and decelerate the closing of the cabinet door from a greater angle and provides the user with a superior relaxed opening movement.

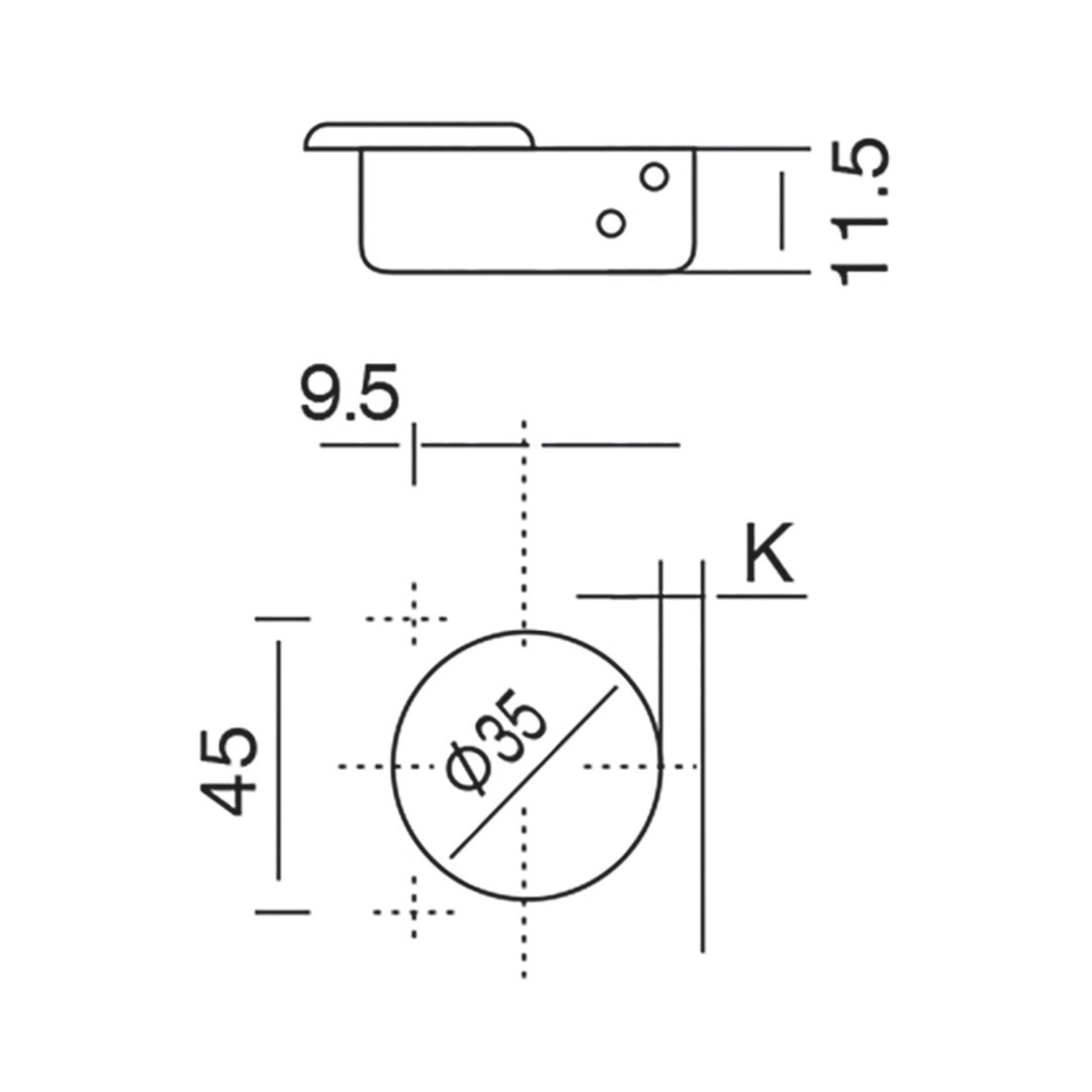

Image	Article #	Closing Mechanism	Hinge Cup Depth	Hinge Cup Type	Door Type	Hinge Fixing Type	Opening Angle
	DT105C80A675F	Soft-Close	11.5 mm	45 mm Standard Pattern	Standard Doors	Screw-On	110°
	DT105C80A675NF	Soft-Close	11.5 mm	45 mm Standard Pattern	Standard Doors	Knock-in (with Dowel)	110°
	DT105C80A675KF	Soft-Close	11.5 mm	45 mm Standard Pattern	Standard Doors	Toolless	110°
	DT105C80C675F	Soft-Close	11.5 mm	45 mm Standard Pattern	Standard Doors	Screw-On	110°
	DT105C80C675NF	Soft-Close	11.5 mm	45 mm Standard Pattern	Standard Doors	Knock-in (with Dowel)	110°
	DT105C80B675F	Soft-Close	11.5 mm	45 mm Standard Pattern	Standard Doors	Screw-On	110°
	DT105C80B675NF	Soft-Close	11.5 mm	45 mm Standard Pattern	Standard Doors	Knock-in (with Dowel)	110°
