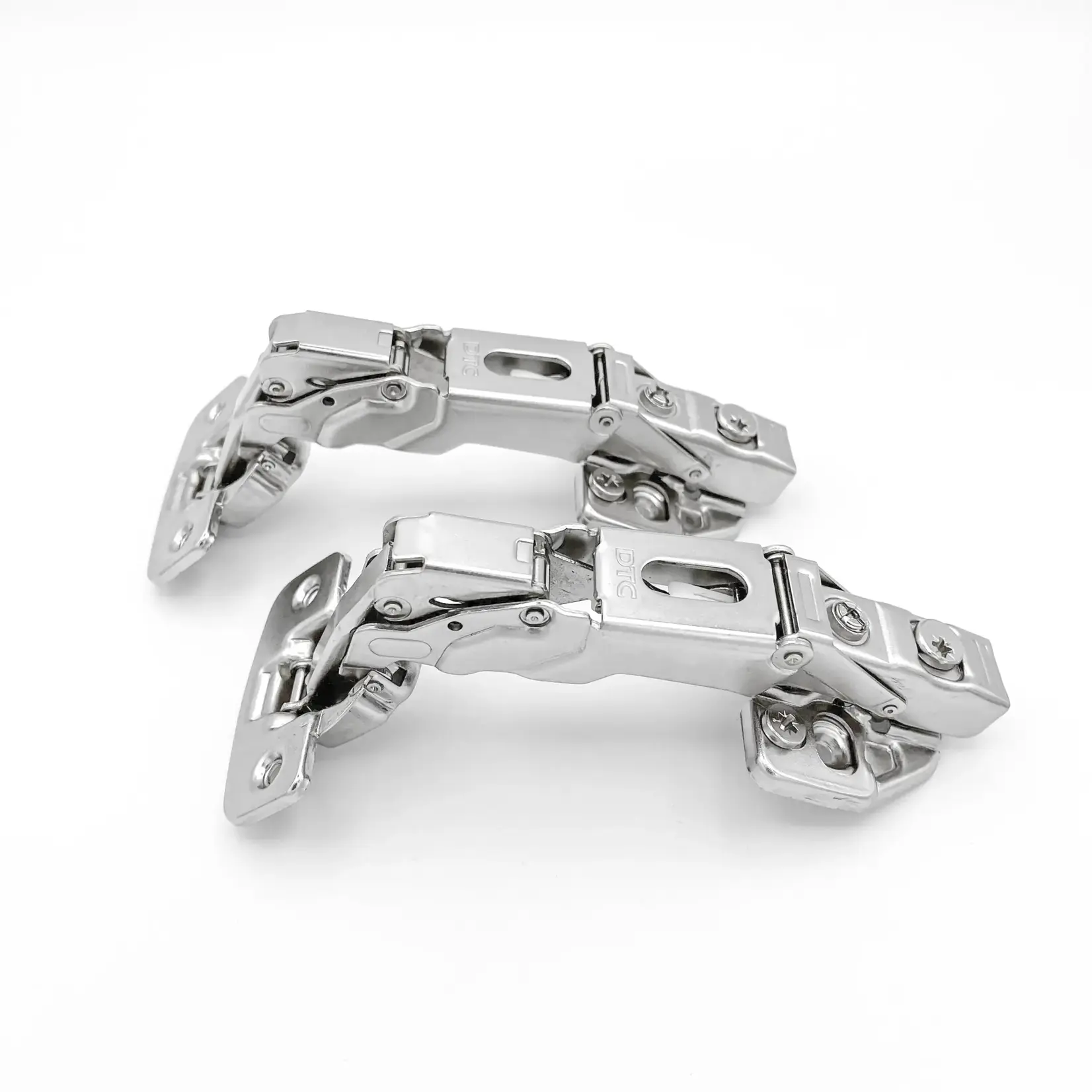

Pivot-Pro C-80 Hinge 155° Soft-Close (2 Pack)
| Article number: | DT105C80A605FPK |
| In Store Sample Location: |
|
| Stock Location: | Ships Within 1-2 Weeks Or Less |
| Delivery time: | Ships within 2-3 Business Days |
DTC Pivot-Pro C-80 Hinge 155° Soft-Close Full Overlay Screw-On. Clip-on Cam Mounting Plate 2 mm - Screw-on for standard cabinet thickness of 5/8 in. 4 x #6 5/8 in Robertson Wood Screws included. Your corner cabinets don't need to be a stressor any longer with these 155° Soft-Close DTC corner cabinet hinges. Easily replace and install these cabinet hinges for a quick kitchen upgrade. You can DIY with these hinges!
Details
- Article #
- DT105C80A605FPK
- Brand
- DTC
- Closing Mechanism
- Soft-Close
- Door Type
- Wide Angle
- Hinge Fixing Type
- Screw-On
- Application
- Full Overlay
- Collection
- Pivot-Pro C-80

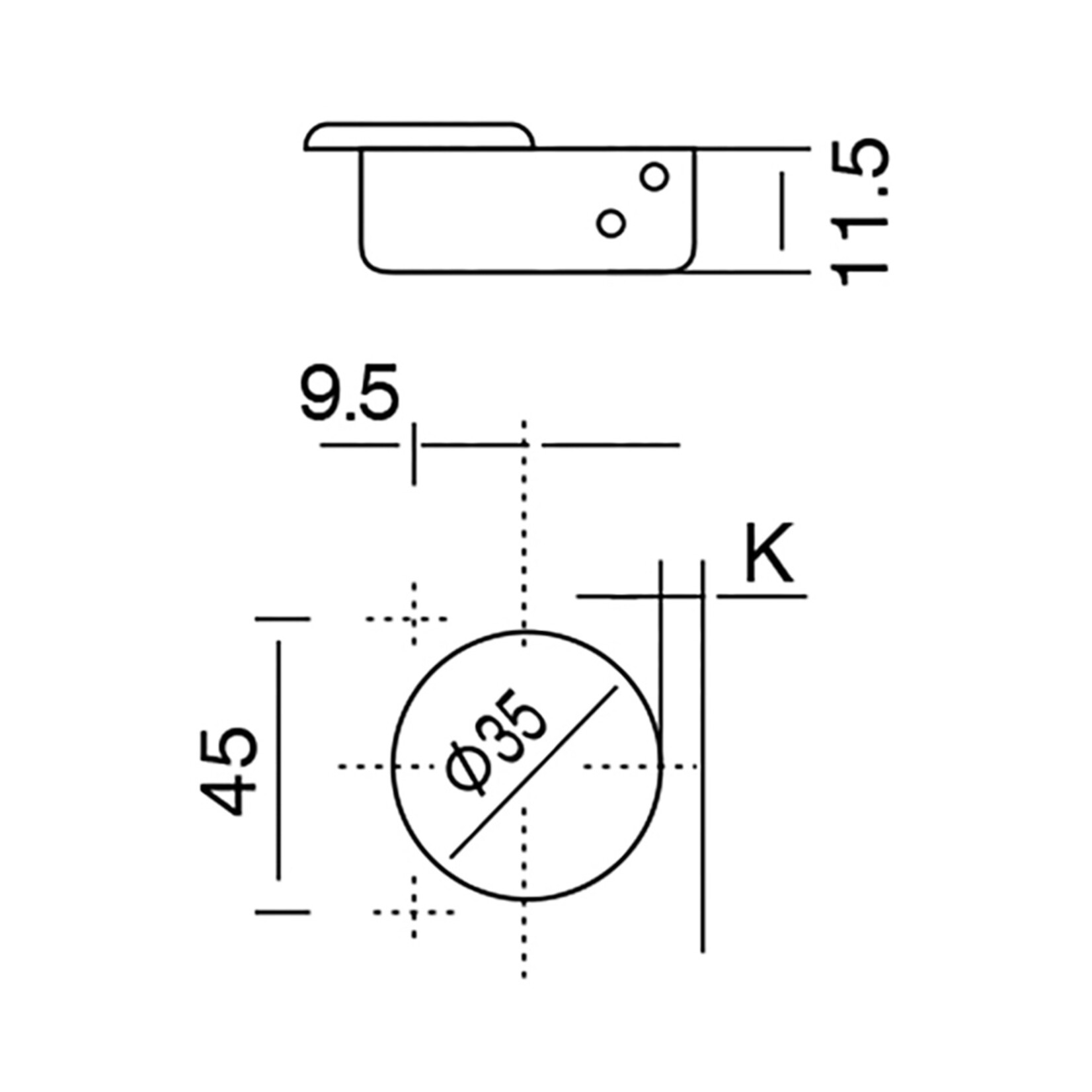

- Hinge Cup Type
- 45 mm Standard Pattern
- Hinge Cup Depth
- 11.5 mm
- Head Type
- Flat
- Type
- Hinge
- Nibs Included
- No
- Bit Size
- #2
- Screw Size
- #6
- Drive Type
- Robertson
- Features
- • 4 x #6 5/8 in Wood Screws • 2 mm Height Screw On Mounting Plate (For 5/8 in standard cabinet thickness)
- Hinge Plate Attachment
- Clip-on
- Plate Fixing Type
- Screw-on
- Plate Height
- 2 mm
- Opening Angle
- 155°
- Manufacturer SKU
- DT105C80A605F
