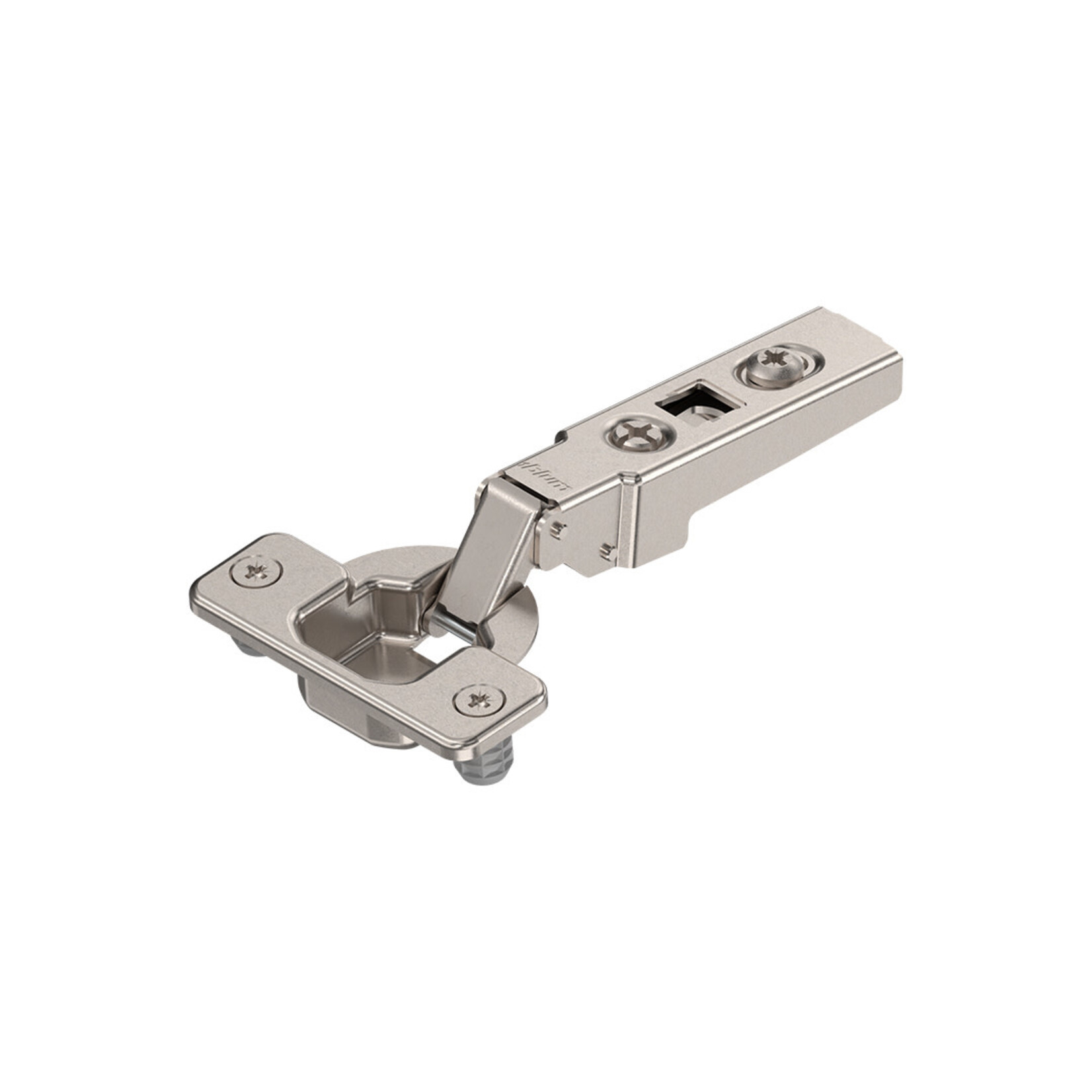

Blum - 100° Hinge - Self-Closing

Article number:	BL71M2580
Manufacturer SKU	71M2580
In Store Sample Location:
Stock Location:

For a more affordable european hinge or for those specific angles needed, the Blum 100° Full Overlay Hinge is a standard application for your 90° cabinet and door and offers enough range of motion to give you the space and comfort you need. The Blum CLIP Top functionality makes installing these hinges easier than ever, they simply clip onto the mounting plate and your cabinet doors are attached! Their self closing gets the job done and is reliable like any other Blum hinge. These knock-in hinges use 8 mm dowels that you simply "knock" into your cabinet door, an easy alternative for the toolless feature.

Image	Article #	Closing Mechanism	Hinge Cup Depth	Hinge Cup Type	Door Type	Hinge Fixing Type	Opening Angle
	BL71M2580	Self-Closing	10.5 mm	35 mm	Standard Doors	Knock-in (with Dowel)	100°
	BL71M2550	Self-Closing	10.5 mm	35 mm	Standard Doors	Screw-On	100°
	BL71M2650	Self-Closing	10.5 mm	35 mm	Standard Doors	Screw-On	100°
	BL71M2780	Self-Closing	10.5 mm	35 mm	Standard Doors	Knock-in (with Dowel)	100°
	BL71M2680	Self-Closing	10.5 mm	35 mm	Standard Doors	Knock-in (with Dowel)	100°
