FREEfold Bi-fold Lift Kit

FREEfold Bi-fold Lift Kit KBKIT8409390

Home Drawer Slides & Hinges Lift Systems Bi-fold Lifts

Article number:	KBKIT8409390
Manufacturer SKU	KIT8409390
In Store Sample Location:
Stock Location:	Ships Within 1-2 Weeks Or Less

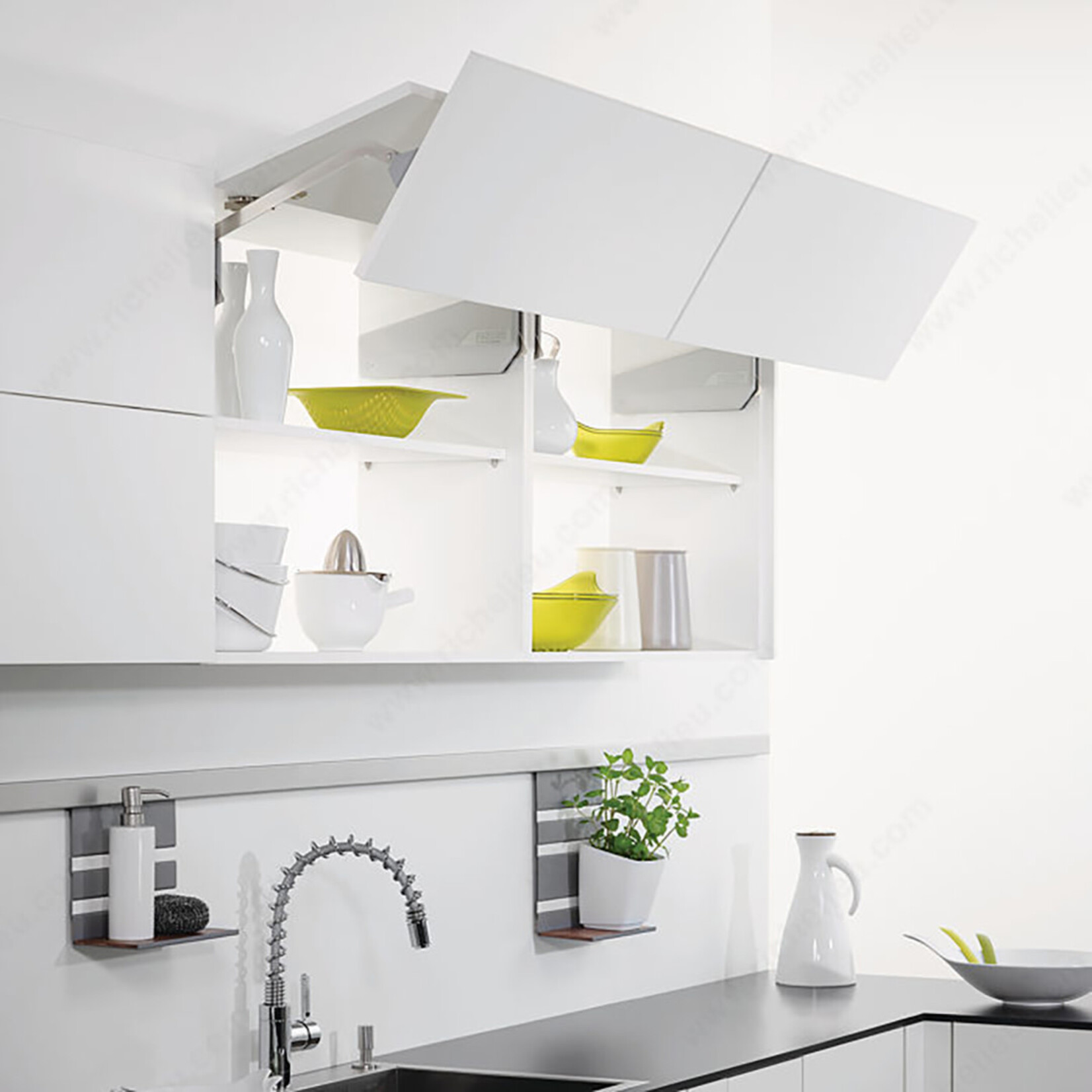

The intelligent Freefold lifter saves space by folding the front panel as it lifts up. It's a convenient solution for wall units with large, heavy front panels, and for wall elements that vary in height or rooms with low ceilings. The integrated multi-position stop guarantees the front will stop immediately and securely in any position. Stylish solution for tall wall units.

Door Height: 28 to 31 1/8 in

Article #	Closing Mechanism	Cover Cap Colour	Door Type	Hinge Fixing Type	Door Weight	Door Height
KBKIT7809390	Soft-Close	White	Wooden Door	Screw-On	7.72 to 15.9 lb	28 to 31 1/8 in
KBKIT7807190	Soft-Close	Grey	Wooden Door	Screw-On	7.72 to 15.9 lb	28 to 31 1/8 in
KBKIT7809380	Soft-Close	White	Wooden Door	Euro Screw	7.72 to 15.9 lb	28 to 31 1/8 in
KBKIT7807180	Soft-Close	Grey	Wooden Door	Euro Screw	7.72 to 15.9 lb	28 to 31 1/8 in
KBKIT7909390	Soft-Close	White	Wooden Door	Screw-On	11.5 to 22.7 lb	28 to 31 1/8 in
KBKIT7907190	Soft-Close	Grey	Wooden Door	Screw-On	11.5 to 22.7 lb	28 to 31 1/8 in
KBKIT7909380	Soft-Close	White	Wooden Door	Euro Screw	11.5 to 22.7 lb	28 to 31 1/8 in
KBKIT7907180	Soft-Close	Grey	Wooden Door	Euro Screw	11.5 to 22.7 lb	28 to 31 1/8 in
KBKIT8009390	Soft-Close	White	Wooden Door	Screw-On	19.2 to 37.9 lb	28 to 31 1/8 in
KBKIT8007190	Soft-Close	Grey	Wooden Door	Screw-On	19.2 to 37.9 lb	28 to 31 1/8 in
KBKIT8009380	Soft-Close	White	Wooden Door	Euro Screw	19.2 to 37.9 lb	28 to 31 1/8 in
KBKIT8007180	Soft-Close	Grey	Wooden Door	Euro Screw	19.2 to 37.9 lb	28 to 31 1/8 in

Door Height: 25 5/8 to 28 3/4 in

Article #	Closing Mechanism	Cover Cap Colour	Door Type	Hinge Fixing Type	Door Weight	Door Height
KBKIT7409390	Soft-Close	White	Wooden Door	Screw-On	8.6 to 17.4 lb	25 5/8 to 28 3/4 in
KBKIT7407190	Soft-Close	Grey	Wooden Door	Screw-On	8.6 to 17.4 lb	25 5/8 to 28 3/4 in
KBKIT7409380	Soft-Close	White	Wooden Door	Euro Screw	8.6 to 17.4 lb	25 5/8 to 28 3/4 in
KBKIT7407180	Soft-Close	Grey	Wooden Door	Euro Screw	8.6 to 17.4 lb	25 5/8 to 28 3/4 in
KBKIT7509390	Soft-Close	White	Wooden Door	Screw-On	12.8 to 25.6 lb	25 5/8 to 28 3/4 in
KBKIT7507190	Soft-Close	Grey	Wooden Door	Screw-On	12.8 to 25.6 lb	25 5/8 to 28 3/4 in
KBKIT7509380	Soft-Close	White	Wooden Door	Euro Screw	12.8 to 25.6 lb	25 5/8 to 28 3/4 in
KBKIT7507180	Soft-Close	Grey	Wooden Door	Euro Screw	12.8 to 25.6 lb	25 5/8 to 28 3/4 in
KBKIT7609390	Soft-Close	White	Wooden Door	Screw-On	20.9 to 41.2 lb	25 5/8 to 28 3/4 in
KBKIT7607190	Soft-Close	Grey	Wooden Door	Screw-On	20.9 to 41.2 lb	25 5/8 to 28 3/4 in
KBKIT7609380	Soft-Close	White	Wooden Door	Euro Screw	20.9 to 41.2 lb	25 5/8 to 28 3/4 in
KBKIT7607180	Soft-Close	Grey	Wooden Door	Euro Screw	20.9 to 41.2 lb	25 5/8 to 28 3/4 in

Door Height: 30 3/8 to 33 1/8 in

Article #	Closing Mechanism	Cover Cap Colour	Door Type	Hinge Fixing Type	Door Weight	Door Height
KBKIT8309390	Soft-Close	White	Wooden Door	Screw-On	10.8 to 21.6 lb	30 3/8 to 33 1/8 in
KBKIT8307190	Soft-Close	Grey	Wooden Door	Screw-On	10.8 to 21.6 lb	30 3/8 to 33 1/8 in
KBKIT8309380	Soft-Close	White	Wooden Door	Euro Screw	10.8 to 21.6 lb	30 3/8 to 33 1/8 in
KBKIT8307180	Soft-Close	Grey	Wooden Door	Euro Screw	10.8 to 21.6 lb	30 3/8 to 33 1/8 in
KBKIT8409390	Soft-Close	White	Wooden Door	Screw-On	17.6 to 34.2 lb	30 3/8 to 33 1/8 in
KBKIT8407190	Soft-Close	Grey	Wooden Door	Screw-On	17.6 to 34.2 lb	30 3/8 to 33 1/8 in
KBKIT8409380	Soft-Close	White	Wooden Door	Euro Screw	17.6 to 34.2 lb	30 3/8 to 33 1/8 in
KBKIT8407180	Soft-Close	Grey	Wooden Door	Euro Screw	17.6 to 34.2 lb	30 3/8 to 33 1/8 in

Door Height: 20 1/2 to 23 1/4 in

Article #	Closing Mechanism	Cover Cap Colour	Door Type	Hinge Fixing Type	Door Weight	Door Height
KBKIT6609390	Soft-Close	White	Wooden Door	Screw-On	10.6 to 21.6 lb	20 1/2 to 23 1/4 in
KBKIT6607190	Soft-Close	Grey	Wooden Door	Screw-On	10.6 to 21.6 lb	20 1/2 to 23 1/4 in
KBKIT6609380	Soft-Close	White	Wooden Door	Euro Screw	10.6 to 21.6 lb	20 1/2 to 23 1/4 in
KBKIT6607180	Soft-Close	Grey	Wooden Door	Euro Screw	10.6 to 21.6 lb	20 1/2 to 23 1/4 in

Door Height: 22 7/8 to 25 5/8 in

Article #	Closing Mechanism	Cover Cap Colour	Door Type	Hinge Fixing Type	Door Weight	Door Height
KBKIT7109390	Soft-Close	White	Wooden Door	Screw-On	13.2 to 26.9 lb	22 7/8 to 25 5/8 in
KBKIT7107190	Soft-Close	Grey	Wooden Door	Screw-On	13.2 to 26.9 lb	22 7/8 to 25 5/8 in
KBKIT7109380	Soft-Close	White	Wooden Door	Euro Screw	13.2 to 26.9 lb	22 7/8 to 25 5/8 in
KBKIT7107180	Soft-Close	Grey	Wooden Door	Euro Screw	13.2 to 26.9 lb	22 7/8 to 25 5/8 in

Door Height: 35 7/8 to 38 1/4 in

Article #	Closing Mechanism	Cover Cap Colour	Door Type	Hinge Fixing Type	Door Weight	Door Height
KBKIT9209390	Soft-Close	White	Wooden Door	Screw-On	15 to 29.8 lb	35 7/8 to 38 1/4 in
KBKIT9207190	Soft-Close	Grey	Wooden Door	Screw-On	15 to 29.8 lb	35 7/8 to 38 1/4 in
KBKIT9209380	Soft-Close	White	Wooden Door	Euro Screw	15 to 29.8 lb	35 7/8 to 38 1/4 in
KBKIT9207180	Soft-Close	Grey	Wooden Door	Euro Screw	15 to 29.8 lb	35 7/8 to 38 1/4 in

Door Height: 33 1/8 to 35 7/8 in

Article #	Closing Mechanism	Cover Cap Colour	Door Type	Hinge Fixing Type	Door Weight	Door Height
KBKIT8809390	Soft-Close	White	Wooden Door	Screw-On	16.1 to 32.2 lb	33 1/8 to 35 7/8 in
KBKIT8807190	Soft-Close	Grey	Wooden Door	Screw-On	16.1 to 32.2 lb	33 1/8 to 35 7/8 in
KBKIT8809380	Soft-Close	White	Wooden Door	Euro Screw	16.1 to 32.2 lb	33 1/8 to 35 7/8 in
KBKIT8807180	Soft-Close	Grey	Wooden Door	Euro Screw	16.1 to 32.2 lb	33 1/8 to 35 7/8 in

Article #	Closing Mechanism	Cover Cap Colour	Door Type	Hinge Fixing Type	Door Weight	Door Height
KBKIT7809390	Soft-Close	White	Wooden Door	Screw-On	7.72 to 15.9 lb	28 to 31 1/8 in
KBKIT7807190	Soft-Close	Grey	Wooden Door	Screw-On	7.72 to 15.9 lb	28 to 31 1/8 in
KBKIT7809380	Soft-Close	White	Wooden Door	Euro Screw	7.72 to 15.9 lb	28 to 31 1/8 in
KBKIT7807180	Soft-Close	Grey	Wooden Door	Euro Screw	7.72 to 15.9 lb	28 to 31 1/8 in
KBKIT7409390	Soft-Close	White	Wooden Door	Screw-On	8.6 to 17.4 lb	25 5/8 to 28 3/4 in
KBKIT7407190	Soft-Close	Grey	Wooden Door	Screw-On	8.6 to 17.4 lb	25 5/8 to 28 3/4 in
KBKIT7409380	Soft-Close	White	Wooden Door	Euro Screw	8.6 to 17.4 lb	25 5/8 to 28 3/4 in
KBKIT7407180	Soft-Close	Grey	Wooden Door	Euro Screw	8.6 to 17.4 lb	25 5/8 to 28 3/4 in
KBKIT8309390	Soft-Close	White	Wooden Door	Screw-On	10.8 to 21.6 lb	30 3/8 to 33 1/8 in
KBKIT6609390	Soft-Close	White	Wooden Door	Screw-On	10.6 to 21.6 lb	20 1/2 to 23 1/4 in
KBKIT8307190	Soft-Close	Grey	Wooden Door	Screw-On	10.8 to 21.6 lb	30 3/8 to 33 1/8 in
KBKIT6607190	Soft-Close	Grey	Wooden Door	Screw-On	10.6 to 21.6 lb	20 1/2 to 23 1/4 in
KBKIT8309380	Soft-Close	White	Wooden Door	Euro Screw	10.8 to 21.6 lb	30 3/8 to 33 1/8 in
KBKIT6609380	Soft-Close	White	Wooden Door	Euro Screw	10.6 to 21.6 lb	20 1/2 to 23 1/4 in
KBKIT8307180	Soft-Close	Grey	Wooden Door	Euro Screw	10.8 to 21.6 lb	30 3/8 to 33 1/8 in
KBKIT6607180	Soft-Close	Grey	Wooden Door	Euro Screw	10.6 to 21.6 lb	20 1/2 to 23 1/4 in
KBKIT7909390	Soft-Close	White	Wooden Door	Screw-On	11.5 to 22.7 lb	28 to 31 1/8 in
KBKIT7907190	Soft-Close	Grey	Wooden Door	Screw-On	11.5 to 22.7 lb	28 to 31 1/8 in
KBKIT7909380	Soft-Close	White	Wooden Door	Euro Screw	11.5 to 22.7 lb	28 to 31 1/8 in
KBKIT7907180	Soft-Close	Grey	Wooden Door	Euro Screw	11.5 to 22.7 lb	28 to 31 1/8 in
KBKIT7509390	Soft-Close	White	Wooden Door	Screw-On	12.8 to 25.6 lb	25 5/8 to 28 3/4 in
KBKIT7507190	Soft-Close	Grey	Wooden Door	Screw-On	12.8 to 25.6 lb	25 5/8 to 28 3/4 in
KBKIT7509380	Soft-Close	White	Wooden Door	Euro Screw	12.8 to 25.6 lb	25 5/8 to 28 3/4 in
KBKIT7507180	Soft-Close	Grey	Wooden Door	Euro Screw	12.8 to 25.6 lb	25 5/8 to 28 3/4 in
KBKIT7109390	Soft-Close	White	Wooden Door	Screw-On	13.2 to 26.9 lb	22 7/8 to 25 5/8 in
KBKIT7107190	Soft-Close	Grey	Wooden Door	Screw-On	13.2 to 26.9 lb	22 7/8 to 25 5/8 in
KBKIT7109380	Soft-Close	White	Wooden Door	Euro Screw	13.2 to 26.9 lb	22 7/8 to 25 5/8 in
KBKIT7107180	Soft-Close	Grey	Wooden Door	Euro Screw	13.2 to 26.9 lb	22 7/8 to 25 5/8 in
KBKIT9209390	Soft-Close	White	Wooden Door	Screw-On	15 to 29.8 lb	35 7/8 to 38 1/4 in
KBKIT9207190	Soft-Close	Grey	Wooden Door	Screw-On	15 to 29.8 lb	35 7/8 to 38 1/4 in
KBKIT9209380	Soft-Close	White	Wooden Door	Euro Screw	15 to 29.8 lb	35 7/8 to 38 1/4 in
KBKIT9207180	Soft-Close	Grey	Wooden Door	Euro Screw	15 to 29.8 lb	35 7/8 to 38 1/4 in
KBKIT8809390	Soft-Close	White	Wooden Door	Screw-On	16.1 to 32.2 lb	33 1/8 to 35 7/8 in
KBKIT8807190	Soft-Close	Grey	Wooden Door	Screw-On	16.1 to 32.2 lb	33 1/8 to 35 7/8 in
KBKIT8809380	Soft-Close	White	Wooden Door	Euro Screw	16.1 to 32.2 lb	33 1/8 to 35 7/8 in
KBKIT8807180	Soft-Close	Grey	Wooden Door	Euro Screw	16.1 to 32.2 lb	33 1/8 to 35 7/8 in
KBKIT8409390	Soft-Close	White	Wooden Door	Screw-On	17.6 to 34.2 lb	30 3/8 to 33 1/8 in
KBKIT8407190	Soft-Close	Grey	Wooden Door	Screw-On	17.6 to 34.2 lb	30 3/8 to 33 1/8 in
KBKIT8409380	Soft-Close	White	Wooden Door	Euro Screw	17.6 to 34.2 lb	30 3/8 to 33 1/8 in
KBKIT8407180	Soft-Close	Grey	Wooden Door	Euro Screw	17.6 to 34.2 lb	30 3/8 to 33 1/8 in
KBKIT8009390	Soft-Close	White	Wooden Door	Screw-On	19.2 to 37.9 lb	28 to 31 1/8 in
KBKIT8007190	Soft-Close	Grey	Wooden Door	Screw-On	19.2 to 37.9 lb	28 to 31 1/8 in
KBKIT8009380	Soft-Close	White	Wooden Door	Euro Screw	19.2 to 37.9 lb	28 to 31 1/8 in
KBKIT8007180	Soft-Close	Grey	Wooden Door	Euro Screw	19.2 to 37.9 lb	28 to 31 1/8 in
KBKIT7609390	Soft-Close	White	Wooden Door	Screw-On	20.9 to 41.2 lb	25 5/8 to 28 3/4 in
KBKIT7607190	Soft-Close	Grey	Wooden Door	Screw-On	20.9 to 41.2 lb	25 5/8 to 28 3/4 in
KBKIT7609380	Soft-Close	White	Wooden Door	Euro Screw	20.9 to 41.2 lb	25 5/8 to 28 3/4 in
KBKIT7607180	Soft-Close	Grey	Wooden Door	Euro Screw	20.9 to 41.2 lb	25 5/8 to 28 3/4 in

Details

Brand: Kesseböhmer
Closing Mechanism: Soft-Close
Door Type: Wooden Door
Type: Bi-fold Lifts
Manufacturer SKU: KIT8409390
Article #: KBKIT8409390
Cover Cap Colour: White
Hinge Fixing Type: Screw-On
Door Weight: 17.6 to 34.2 lb
Door Height: 30 3/8 to 33 1/8 in

FREEfold Assembly Instructions

FREEfold Parts
