| Article number: |
DT105C80E677MF |
| Manufacturer SKU |
105-C80E677MF |
| In Store Sample Location: |
|
| Stock Location: |
|

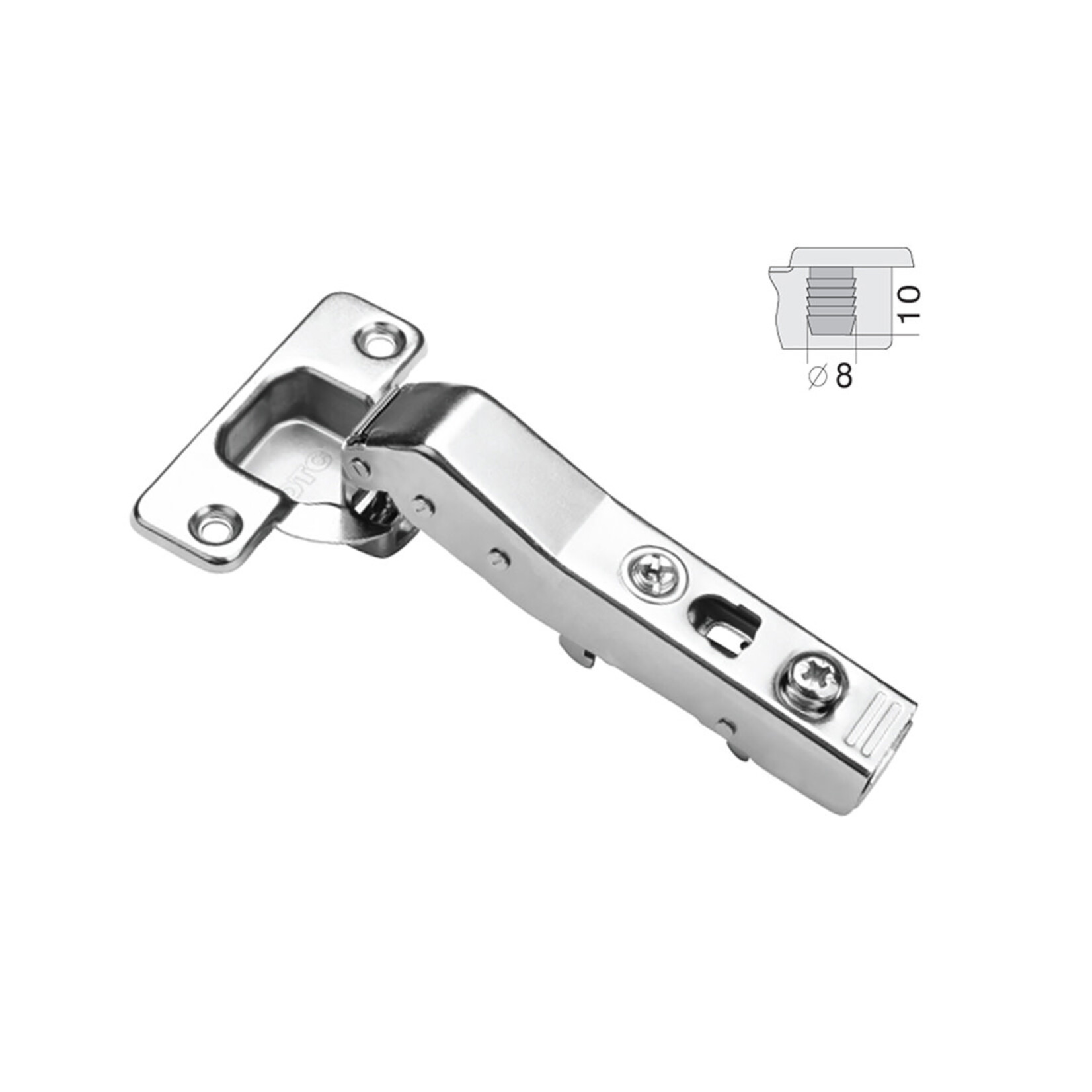

The smooth, soft-close motion of the Pivot-Pro series is the result of a strong damper mechanism that is built into the hinge arm. The DTC C-80 concealed cabinet hinge is a high quality soft-close hinge that offers a lifetime of reliable use. With a relaxed opening and perfect close, it's a great choice for any project.

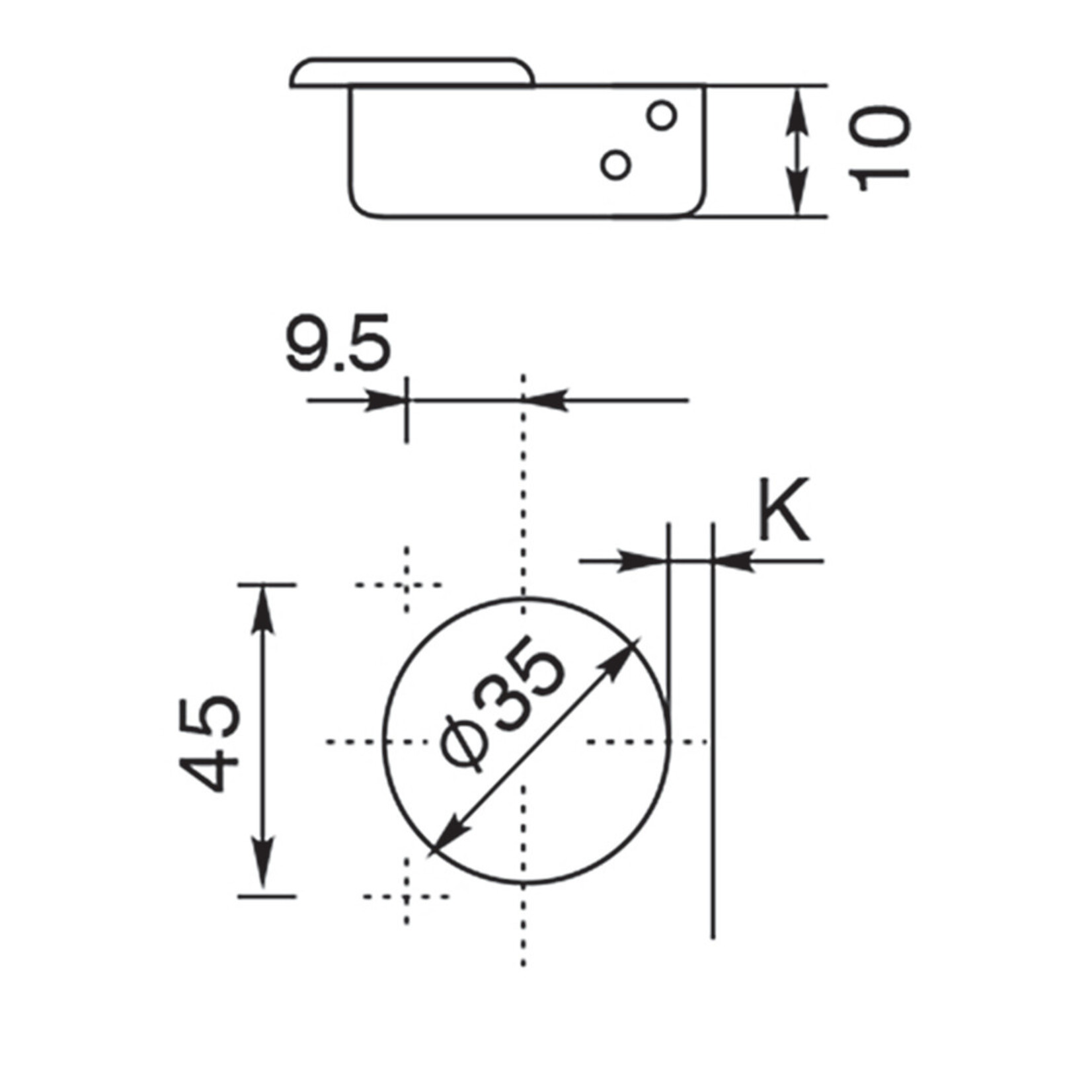

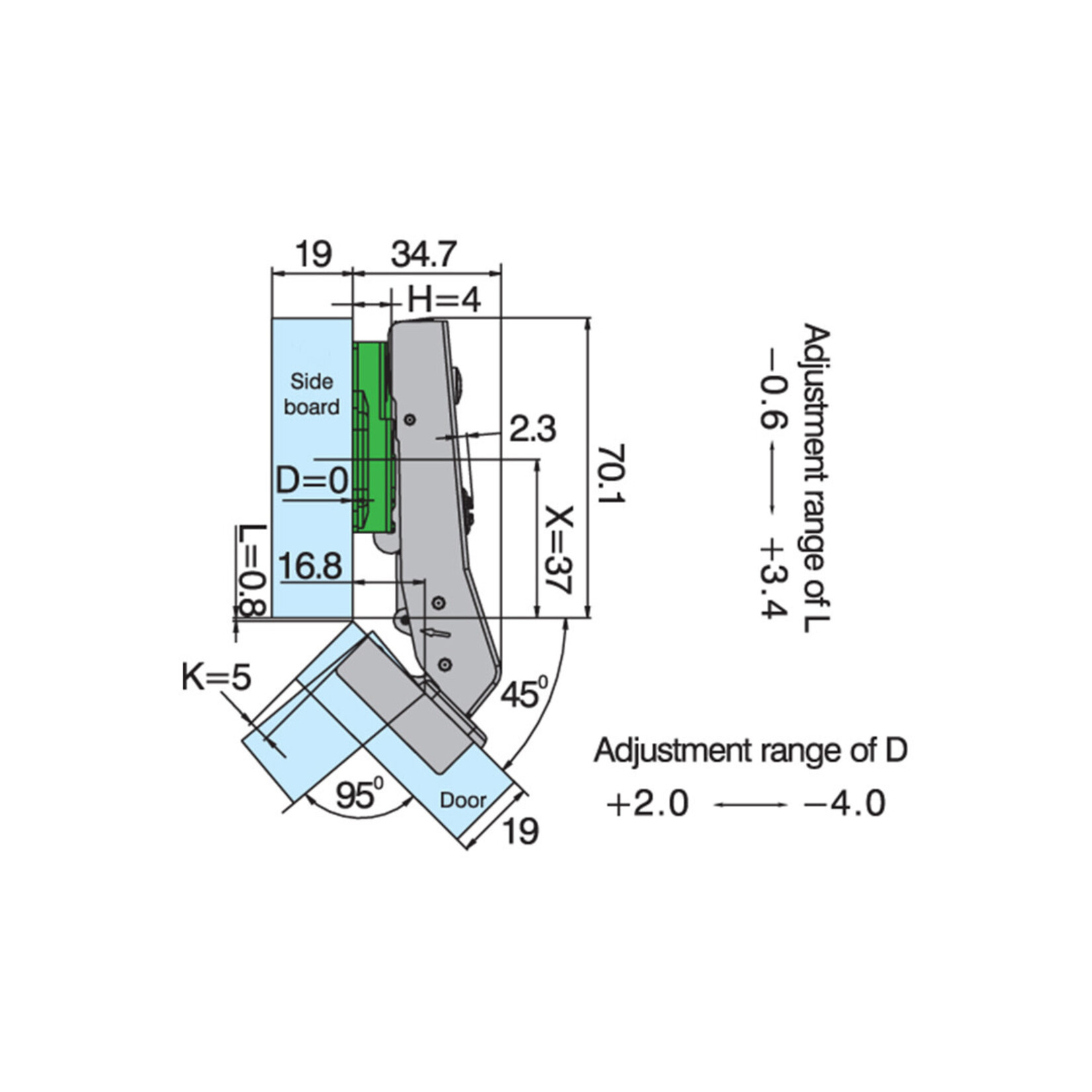

| Image | Article # | Closing Mechanism | Hinge Cup Depth | Hinge Cup Type | Door Type | Hinge Fixing Type | Opening Angle |
|---|
 | DT105C80E675F | Soft-Close | 10 mm | 45 mm Standard Pattern | For Cross Corner | Screw-On | 45° |
 | DT105C80E677MF | Soft-Close | 10 mm | 45 mm Standard Pattern | For Cross Corner | Knock-in (with Dowel) | 45° |
 | DT105C80E675KF | Soft-Close | 10 mm | 45 mm Standard Pattern | For Cross Corner | Toolless | 45° |
Details
- Brand
- DTC
- Closing Mechanism
- Soft-Close
- Hinge Cup Depth
- 10 mm
- Hinge Cup Type
- 45 mm Standard Pattern
- Door Type
- For Cross Corner
- Application
- Specialized Overlay
- Collection
- Pivot-Pro C-80
- Type
- Hinge
- Opening Angle
- 45°
- Manufacturer SKU
- 105-C80E677MF
- Article #
- DT105C80E677MF
- Hinge Fixing Type
- Knock-in (with Dowel)
