| Article number: |
DT105C80J675F |
| Manufacturer SKU |
105-C80J675F |
| In Store Sample Location: |
|
| Stock Location: |
|

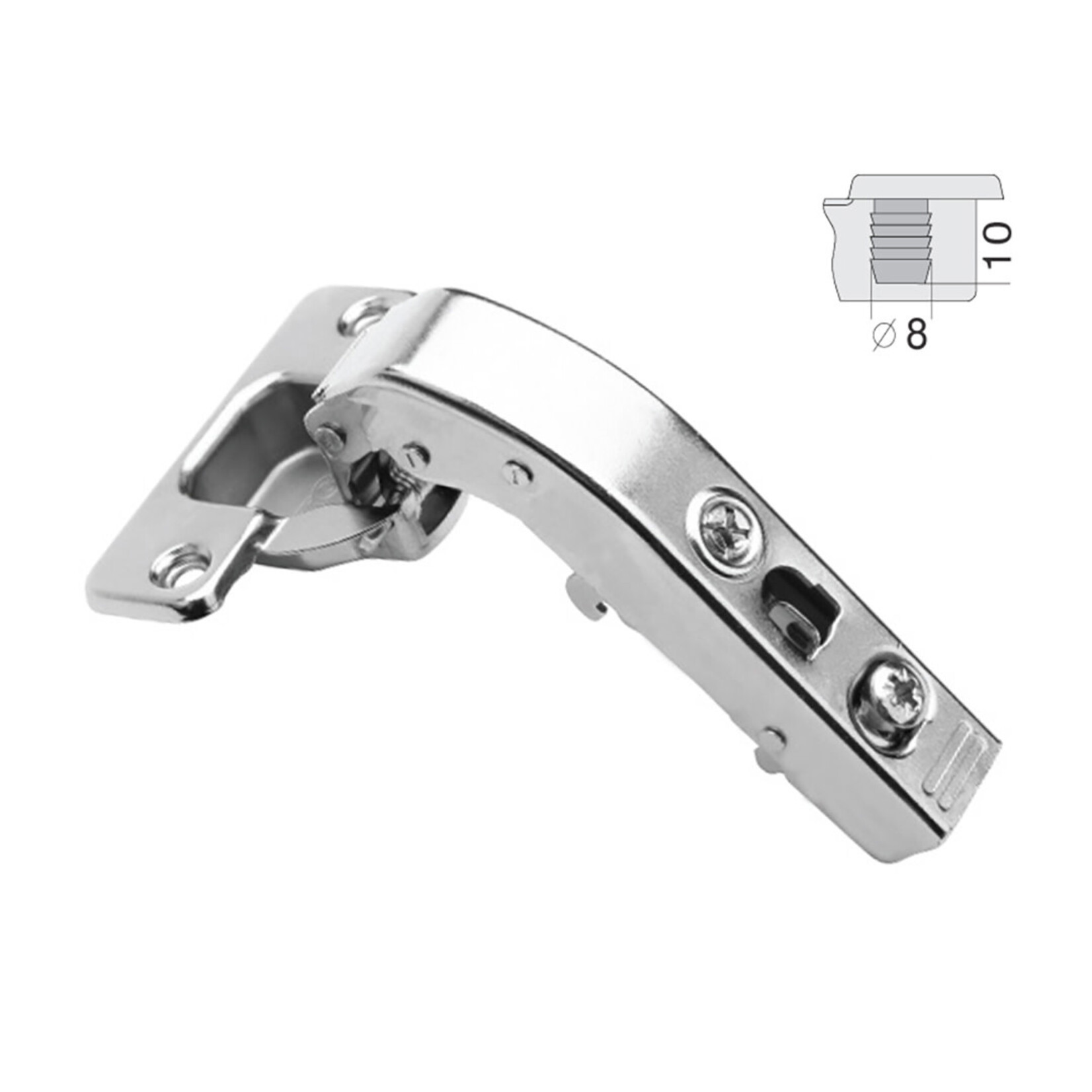

The smooth, soft-close motion of the Pivot-Pro series is the result of a strong damper mechanism that is built into the hinge arm. The DTC C-80 concealed cabinet hinge is a high quality soft-close hinge that offers a lifetime of reliable use. With a relaxed opening and perfect close, it's a great choice for any project.
| Image | Article # | Closing Mechanism | Hinge Cup Depth | Hinge Cup Type | Door Type | Hinge Fixing Type | Opening Angle |
|---|
 | DT105C80J675F | Soft-Close | 10 mm | 45 mm Standard Pattern | Blind Corner | Screw-On | 90° |
 | DT105C80J677MF | Soft-Close | 10 mm | 45 mm Standard Pattern | Blind Corner | Knock-in (with Dowel) | 90° |
 | DT105C80J675KF | Soft-Close | 10 mm | 45 mm Standard Pattern | Blind Corner | Toolless | 90° |
Details
- Brand
- DTC
- Closing Mechanism
- Soft-Close
- Hinge Cup Depth
- 10 mm
- Hinge Cup Type
- 45 mm Standard Pattern
- Door Type
- Blind Corner
- Application
- Specialized Overlay
- Collection
- Pivot-Pro C-80
- Type
- Hinge
- Opening Angle
- 90°
- Manufacturer SKU
- 105-C80J675F
- Article #
- DT105C80J675F
- Hinge Fixing Type
- Screw-On
